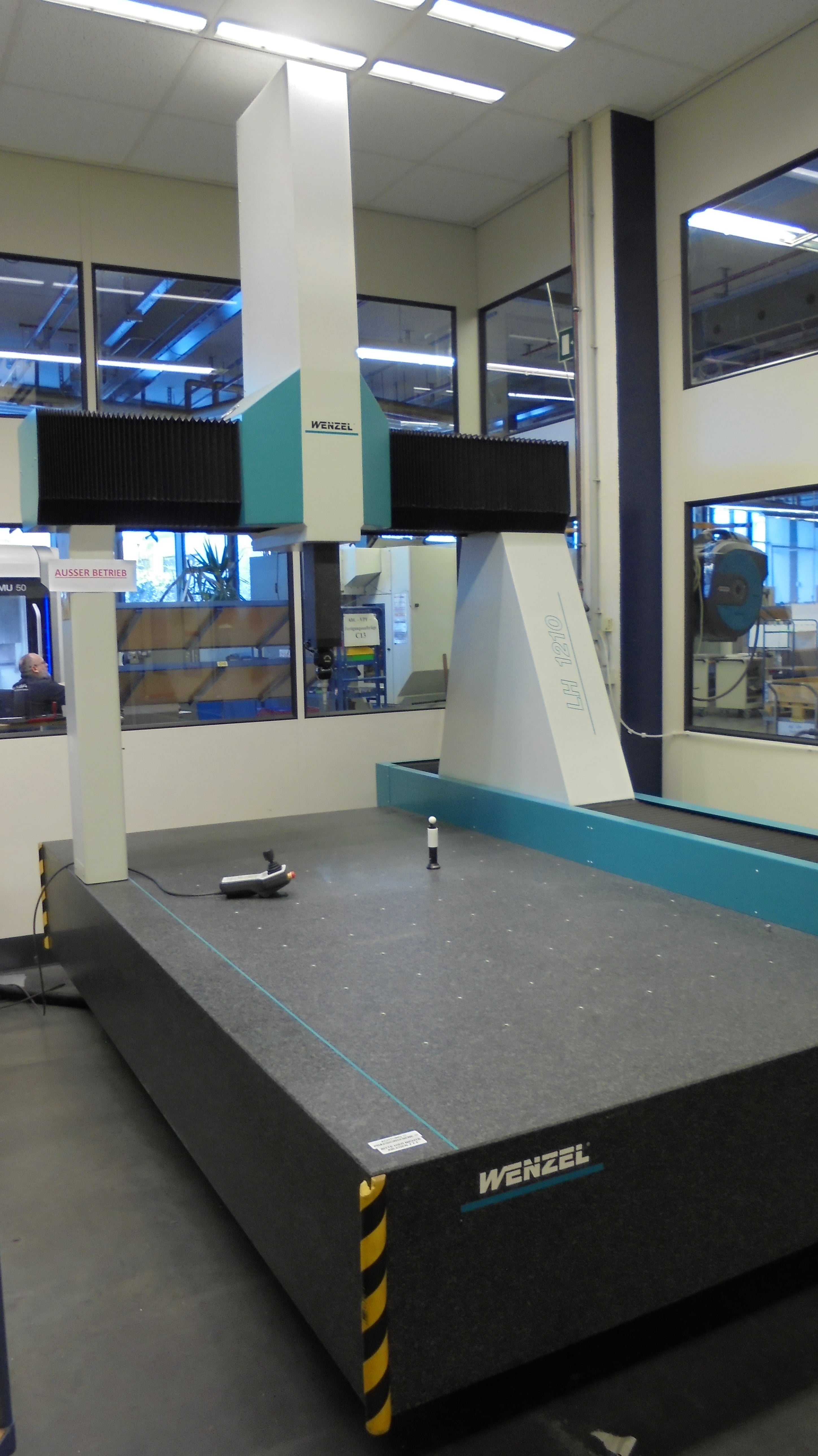

LH 1210 — ID: LH1324/LH1424

Name: LH 1210 — ID: LH1324/LH1424
Brand: WENZEL

Machine data

producer

WENZEL

type

LH 1210

Year of construction

2002

location

WENZEL

measurement range

X-axis [mm]

1200

Y-axis [mm]

2000

Z axis [mm]

1000

Measurement uncertainty

MPEE [μm]

3,0 + L/350

MPEP [μm]

3.0

MPETHP** [μm]

MPETHP** [sec]

temperature range

18°C — 22°C

temperature gradient

1 K/h, 1 K/m, 2 K/d

In accordance with DIN EN ISO 10360-2

fitment

controller

WPC2040/3, HT400

Touch system option 1

PH10M-PLUS | TP200 | 2x SF | SCR200

Option 2 touch system

PH10M-PLUS | SP25M | 1x SM25-2 | 2x SH25-2 | 1x FCR25 (3 ports)

Option 3 touch system

Software option 1

WM | Quartis X3 FREEFORM

Software option 2

WM | Quartis X3M25 FREEFORM

Software option 3

accessory

PC system with Windows 11

Other option 1

18-piece stylus set M2

Other option 2

19-piece stylus set M3

Other option 3

description

Active damping

WM | Quartis FREEFORM package

New PC system

Styli change rack

‍

Subject to prior sale and changes in design and specification without prior notice. The machine may show signs of use.

www.wenzel-group.com

Machine data

Producer

WENZEL

Type

LH 1210

Year of construction

2002

Location

WENZEL

Measurement range

X-axis [mm]

1200

Y-axis [mm]

2000

Z axis [mm]

1000

Measurement uncertainty

MPEE [μm]

3,0 + L/350

MPEP [μm]

3.0

MPETHP** [μm]

MPETHP** [sec]

Temperature range

18°C — 22°C

Temperature gradient

1 K/h, 1 K/m, 2 K/d

In accordance with DIN EN ISO 10360-2

Equipment

Controller

WPC2040/3, HT400

Touch system option 1

PH10M-PLUS | TP200 | 2x SF | SCR200

Touch system option
2

PH10M-PLUS | SP25M | 1x SM25-2 | 2x SH25-2 | 1x FCR25 (3 ports)

Option 3 touch system

Software option 1

WM | Quartis X3 FREEFORM

Software option 2

WM | Quartis X3M25 FREEFORM

Software option 3

Accessories

PC system with Windows 11

Other option 1

18-piece stylus set M2

Other option 2

19-piece stylus set M3

Other option 3

Description

Active damping

WM | Quartis FREEFORM package

New PC system

Styli change rack

‍

Subject to prior sale and changes in design and specification without prior notice. The machine may show signs of use.
